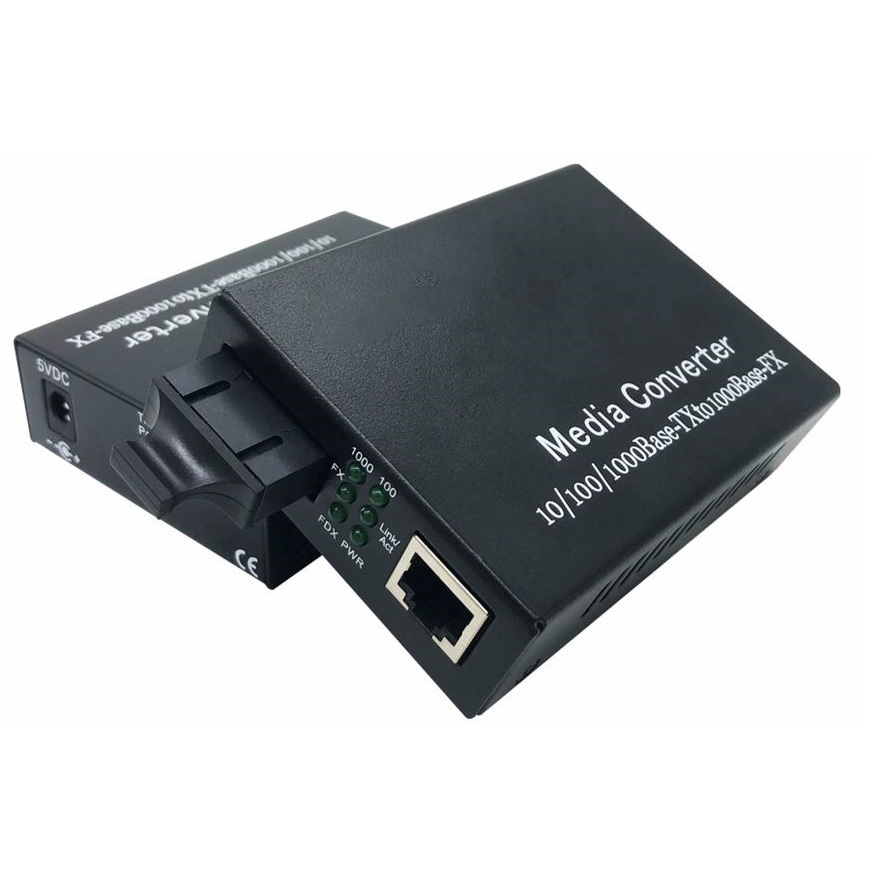

Media Converter: 1 port 1000 Base-FX (2 fibers) and 1 port 10/100/1000 Base-T(x)
Overview
NT-FMC101G fiber Ethernet media converter creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-TX or 1000Base-TX Ethernet signals and 1000Base-FX fiber optical signals to extend an Ethernet network connection over a multimode/single mode fiber backbone.
NT-FMC101G fiber Ethernet media converter supports a maximum multimode fiber optic cable distance of 550m or a maximum single mode fiber optic cable distance of 120km, providing a simple solution for connecting 10/100/1000 Base-TX Ethernet networks to remote locations using dual SC-terminated single mode/multimode fiber, while delivering solid network performance and scalability. Easy to set-up and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, full and half duplex.
Key Features
- Support 1 1000Base-FX fiber port and 1 10/100/1000Base-TX Ethernet port.
- Support IEEE802.3, IEEE802.3u fast Ethernet.
- Full and half duplex communication.
- Plug and play.
- Easy to read LED indicators.
- Includes external 5VDC power supply.
Specifications
Downloads
Ordering Information
|
Model No. |
Description of Goods |
|
10/100/1000M, Dual Fiber |
|
|
NT-FMC101G-M |
10/100/1000M, SC, Multimode, Dual Fiber, 850nm, 550m, 5VDC |
|
NT-FMC101G-20 |
10/100/1000M, SC, Single Mode, Dual Fiber, 1310nm, 20Km, 5VDC |
|
NT-FMC101G-40 |
10/100/1000M, SC, Single Mode, Dual Fiber, 1310nm, 40Km, 5VDC |
|
NT-FMC101G-60 |
10/100/1000M, SC, Single Mode, Dual Fiber, 1550nm, 60Km, 5VDC |
|
NT-FMC101G-80 |
10/100/1000M, SC, Single Mode, Dual Fiber, 1550nm, 80Km, 5VDC |
|
NT-FMC101G-100 |
10/100/1000M, SC, Single Mode, Dual Fiber, 1550nm, 100Km, 5VDC |
|
NT-FMC101G-120 |
10/100/1000M, SC, Single Mode, Dual Fiber, 1550nm, 120Km, 5VDC |
