  • ANDROMEDA SEISMIC SERVER CABINET
NTSSCX36YZ,NTSSCX42YZ,NTSSCX45YZ,NTSSCX47YZ

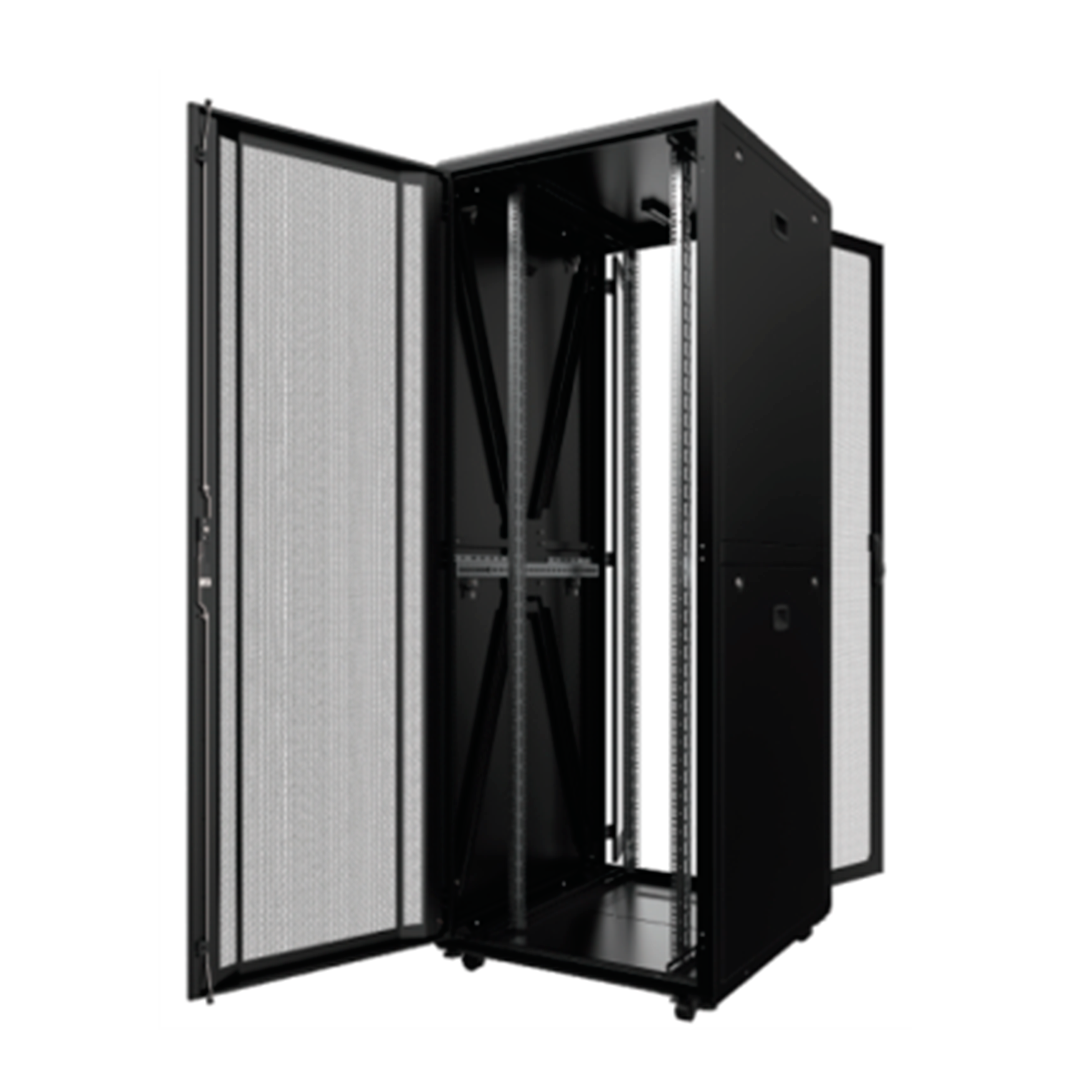

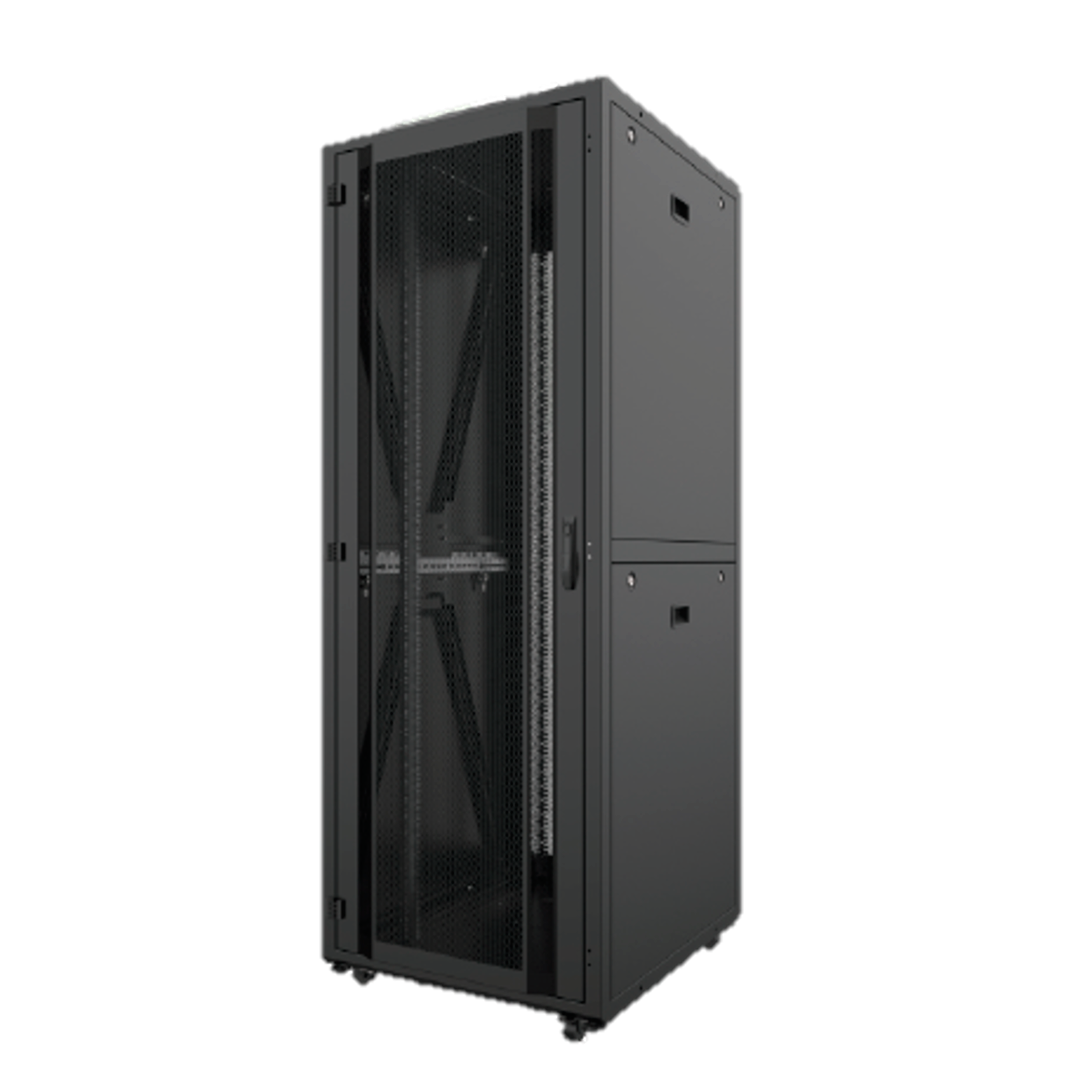

ANDROMEDA SEISMIC SERVER CABINET
ANDROMEDA SEISMIC SERVER CABINET

ANDROMEDA SEISMIC SERVER CABINET

Categories: Floor Cabinets, Racks and Cabinets, Server
  • Overview
  • Key Features
  • Specifications
  • Downloads
  • Ordering Information

Overview

Nitrotel Andromeda Server 19inch Free Standing Rack Cabinet H:42U-47U W:600 or 800mm D: 800, 900, 1000 or 1200 mm – Heavy duty construction with welded front & rear frames, double layer vertical structure 3mm thickness total

  • Single side panel up to 36U and U-height above 36U removable and lockable divided side panels
  • Optional fan-units into the roof or 19inch rack mount type fan unit or vertical fan units for rear door
  • Vertical mounting rails are adjustable throughout the entire depth of the cabinet, multi folded rails 2mm thickness
  • High load carrying capacity (standard 1500kg) – High-flow perforated front and rear doors
  • Ready assembled construction

Key Features

  • Material: SheetSteel,DINEN10130-99 /DC-01 6112/ DC-7122
  • Color RAL 9005 Black
  • Load Carrying Capacity: 1500kg / 3307lbs
  • IP rating IP20
  • In accordance with the standard EN 61587-1: 2012 / EN 61010-1 / IEC 60917-IEC 60297
  • Standards ISO9001-2015
  • IEC 61587-1 :2016
  • IEC 61587-2:2011
  • IEC 61587-3:2013
  • Telcordia GR-63-CORE-Seismic zone 4

Specifications

  • Spec Sheet

Downloads

  • Spec Sheet
  • UL Certification

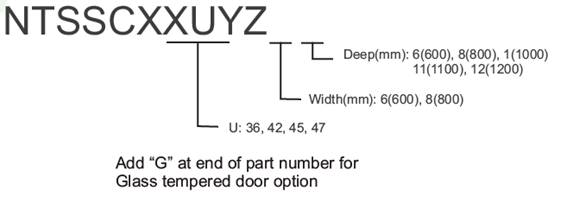

Ordering Information

Related products

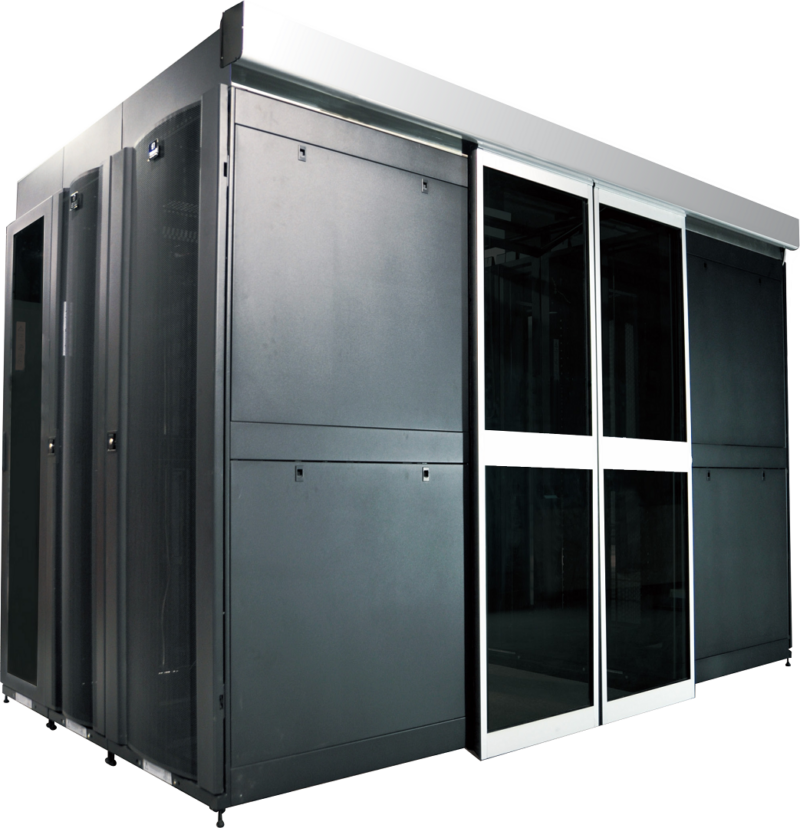

  • Nitrotel Aisle Containment Solution

    Nitrotel Aisle Containment Solution

  • US MADE DOUBLE SECTION WALL MOUNT CABINET

    US MADE DOUBLE SECTION WALL MOUNT CABINET

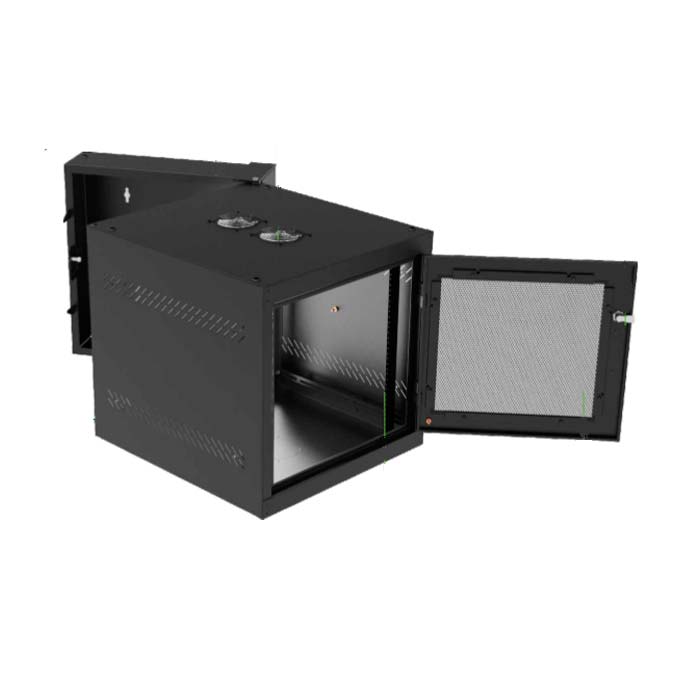

  • WALL MOUNT CABINETS / DOUBLE SECTION

    WALL MOUNT CABINETS / DOUBLE SECTION

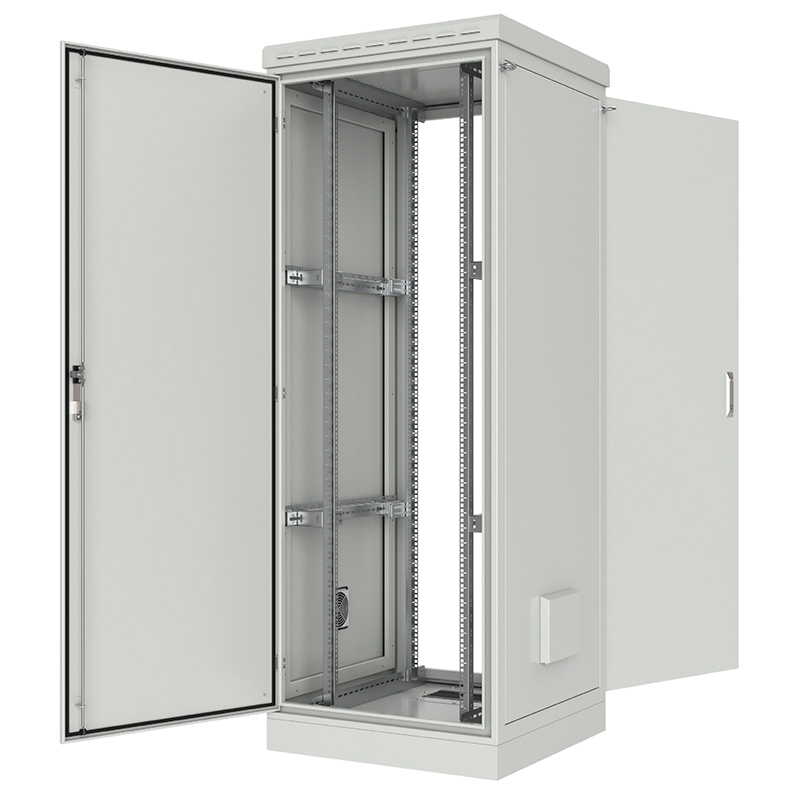

  • FLOOR EXTERIOR CABINET IP55 PROTECTION
