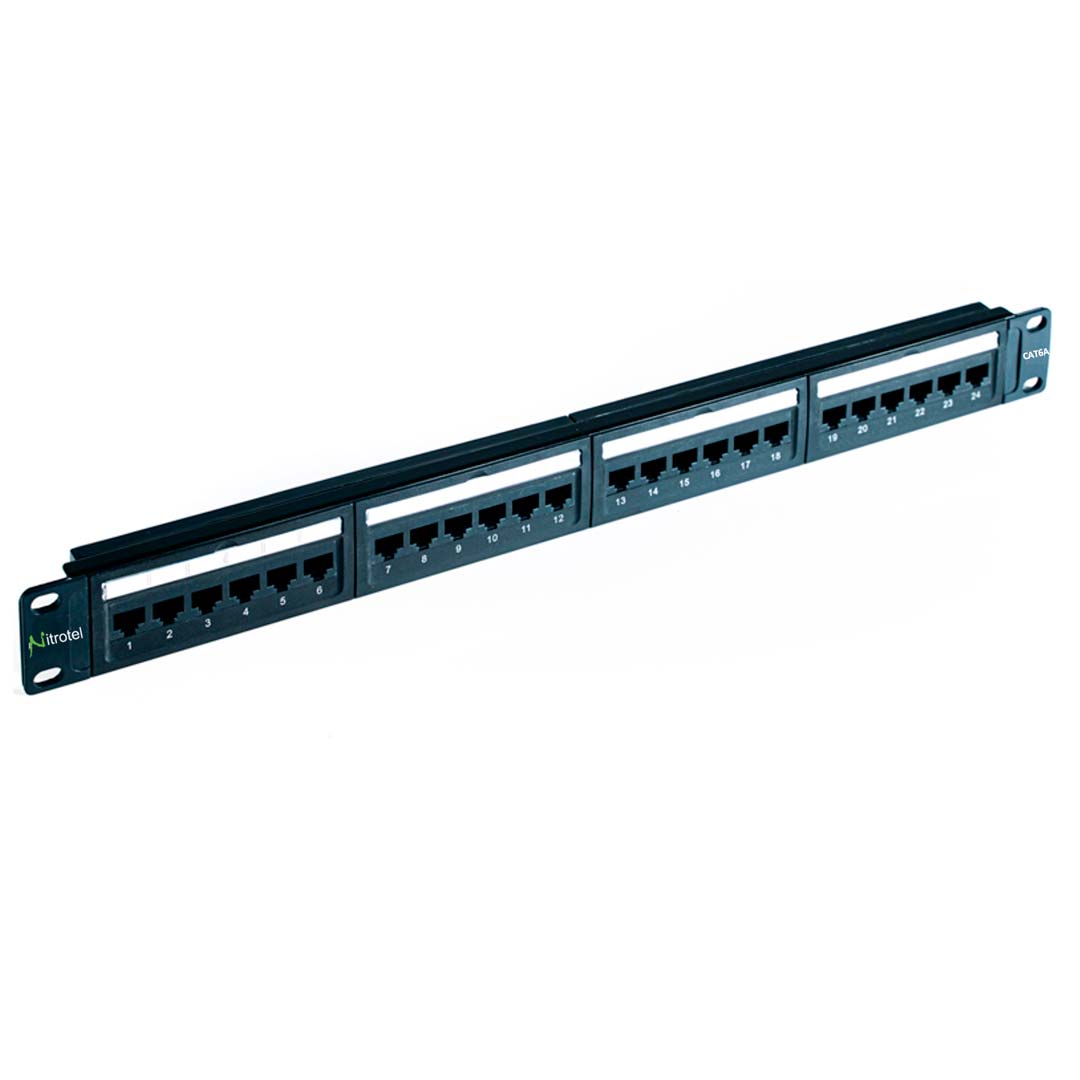

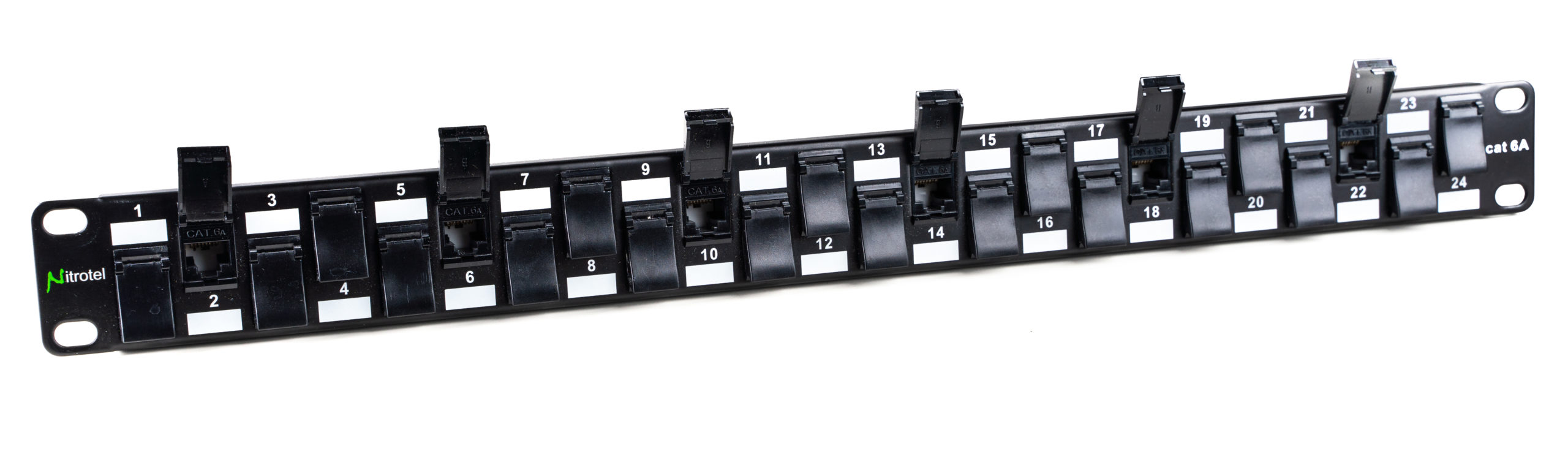

Category 6a, UTP Pre-configured Patch Panel
Overview
Nitrotel’s EngineerPro® exclusive Cat6A, 24/48port, 1U patch panel design offers TIA.568.2D performance up to 500 MHz to support 10GBASE-T and provides a best-in-class alien crosstalk (AXT) suppression. These horizontal 19” rack-mount patch panels include 24/48 pcs EngineerPro® Cat6A unshielded keystone jacks with dust cap protection, rear cable management bar and mounting accessories.
Key Features
- Standard density 1U 24/48port.
- Exclusive crisscross design provides maximum alien crosstalk protection.

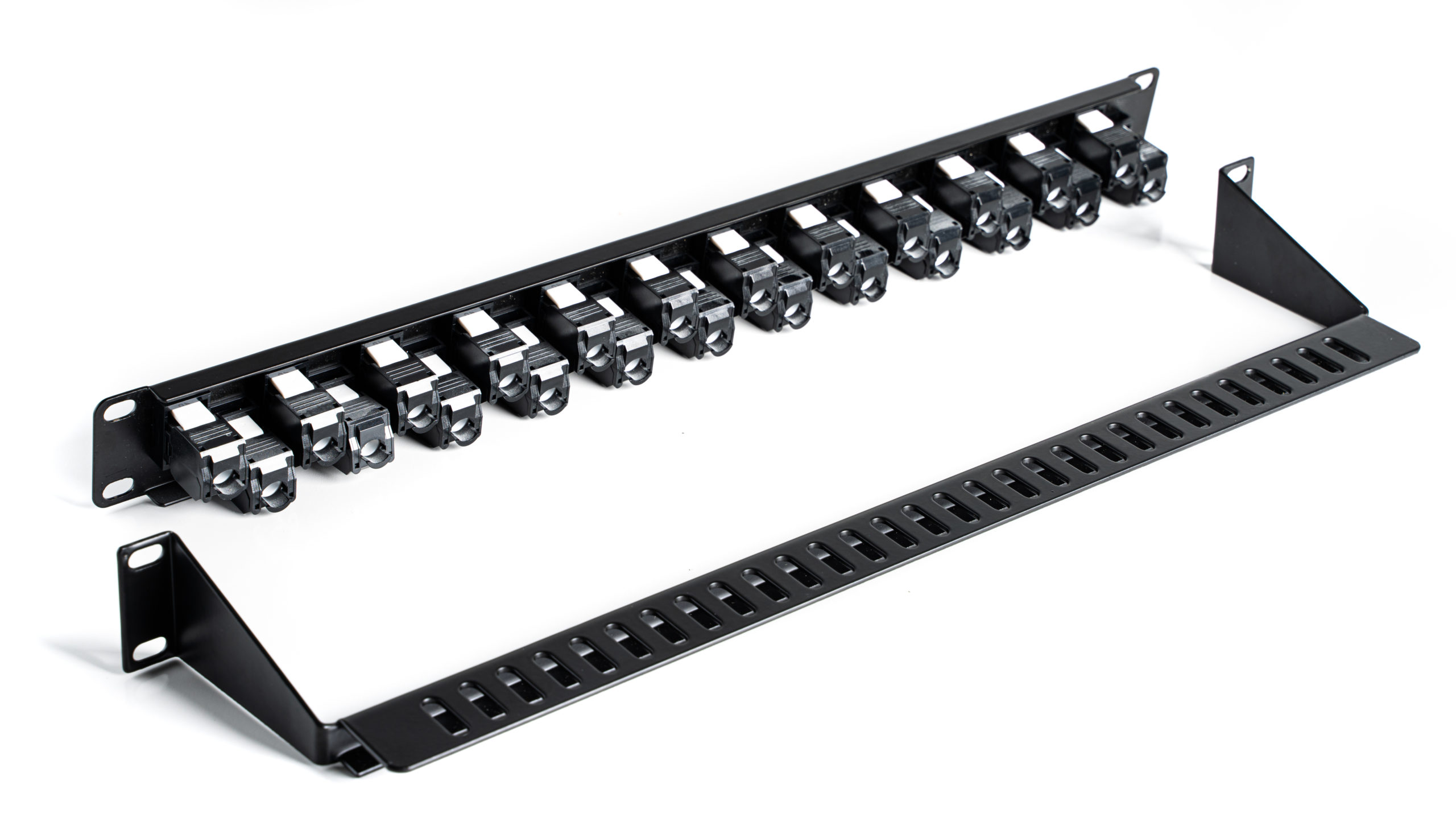

- Convenient rear cable management bar to facilitate proper bend radius of cables.
- Compatible with industry-standard 19” distribution racks.
- Kitted with EngineerPro® tooless Cat6A connectors (black).
- Universal T568A and T568B wiring labels for 110-style IDC termination.
Specifications
Standards Compliance
- ANSI/TIA-568.2-D
- ISO 11801 Class E
- RoHS Compliance
Materials
- 16-gauge steel, painted black;
- PCB and plastic components
- are rated per UL 94V-0
Downloads
Ordering Information
NTPP6AXXU XX= 24,48
