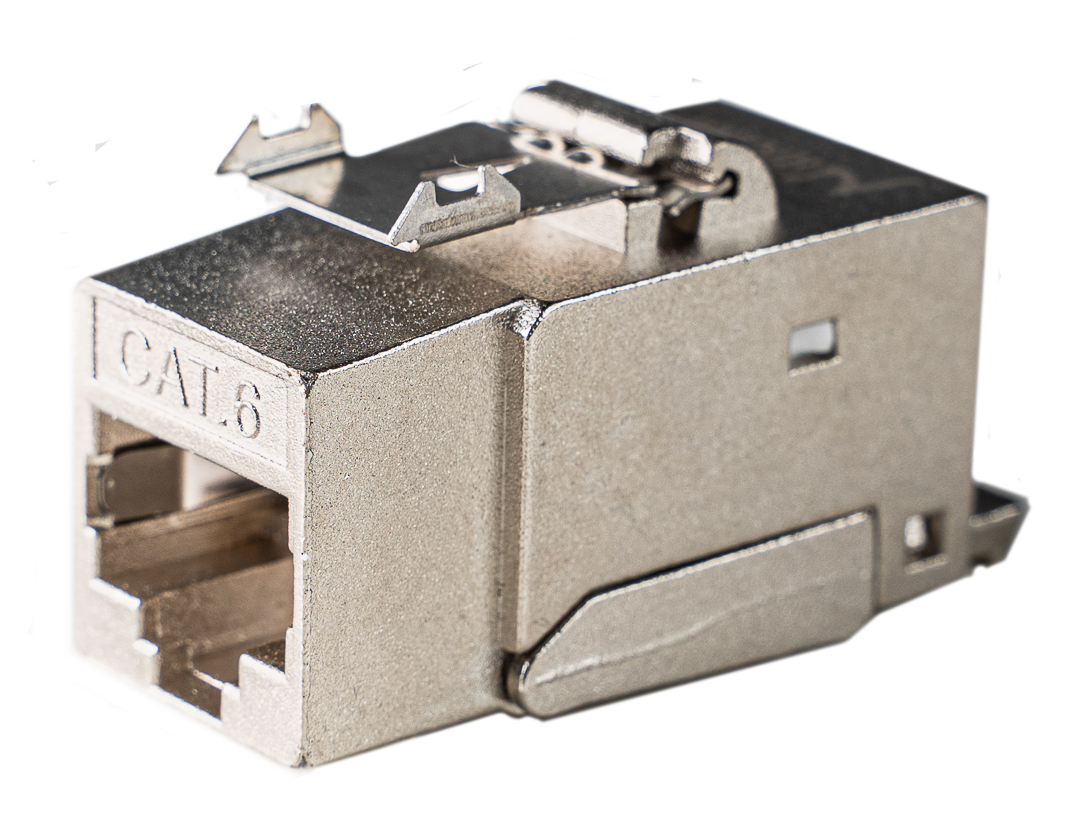

Category 6, RJ45, Keystone Jack Module, 180 Degrees – Shielded
Overview
Nitrotel Cat6 Shielded Keystone Jacks offer exceptional interconnection in 10/100/1000 Base-T Fast and Gigabit Ethernet applications. These component-rated keystone jacks work together with high speed cables, cores and panels to provide performance beyond proposed category 6 standards. Their compact design allows them to fit into any conventional face plate, outlet box, or panel.
Key Features
- Shielding provides EMI/RFI protection and signal isolation
- Connector features robust die-cast housing

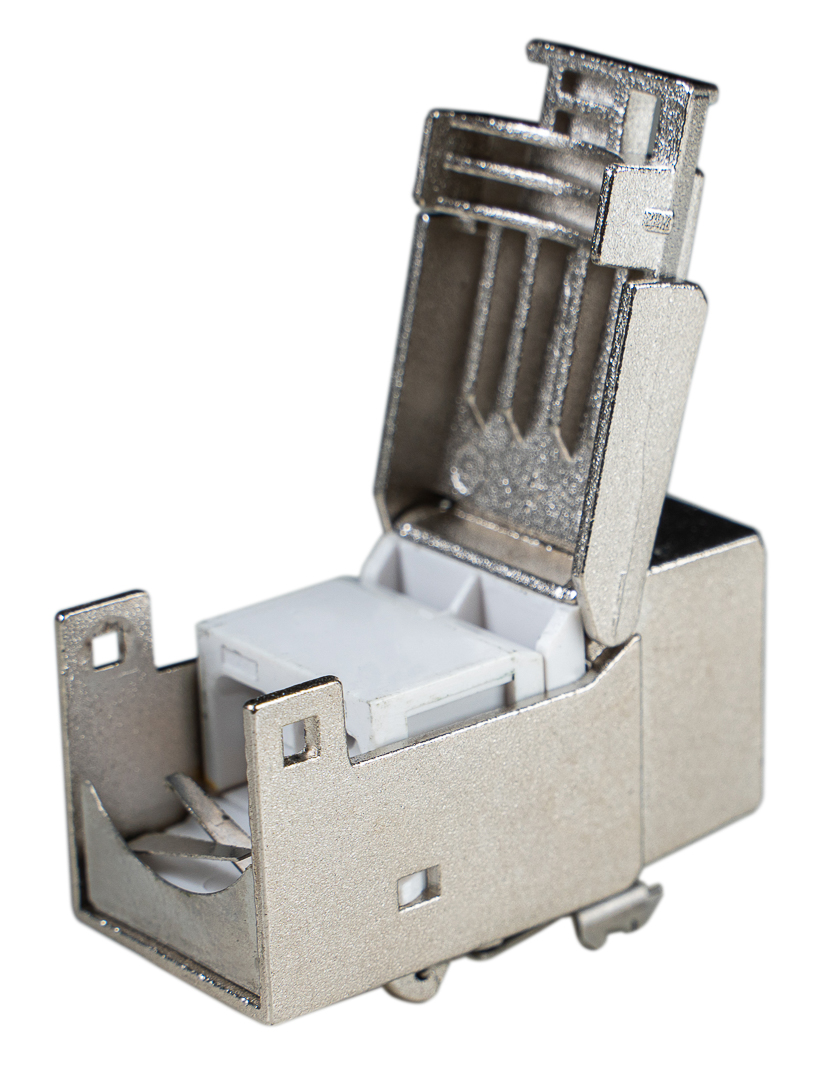

- Connector incorporates a wide-angle, hinged design for easy access and termination
- Supports CAT 6 component, permanent link, and channel performance
- Backward compatible
- Compliant with EIA/TIA-568.2-D Cat6 connecting hardware specifications
- PoE Compliance: Supports IEEE 802.3f/ 802.3at /802.3bt at PoE++ applications and Supports Power over HDBaseT™ (PoH) up to 100 watts
- Dual-color coded labeling made for both 568A & 568B wiring schemes
- Compact slim design fits into any conventional face plate, outlet box, or panel
- UL 1863 approved
- Patented Printed Circuit Board designed to meet Cat6 performances
- Utilizes 180 degree industry standard 110 termination style
- 50u” gold plated contacts.
- Enhanced IDC termination towers reduce installation time and increased performance
Specifications
CAT 6 shielded connector shall be TIA compliant, and provide electrical TIA-568.2-D (CAT 6) and ISO/IEC 11801 (Class E) performance for all parameters up to 550 MHz. Up to six connectors shall be able to fit in a single-gang faceplate for high-density applications. The connector shall be encased in a die-cast housing with a wide-angle, hinged design that allows easy access for termination. The connector shall allow termination without a 110 punch-down tool. The connector shall include T568A and T568B universal color codes.
