Overview

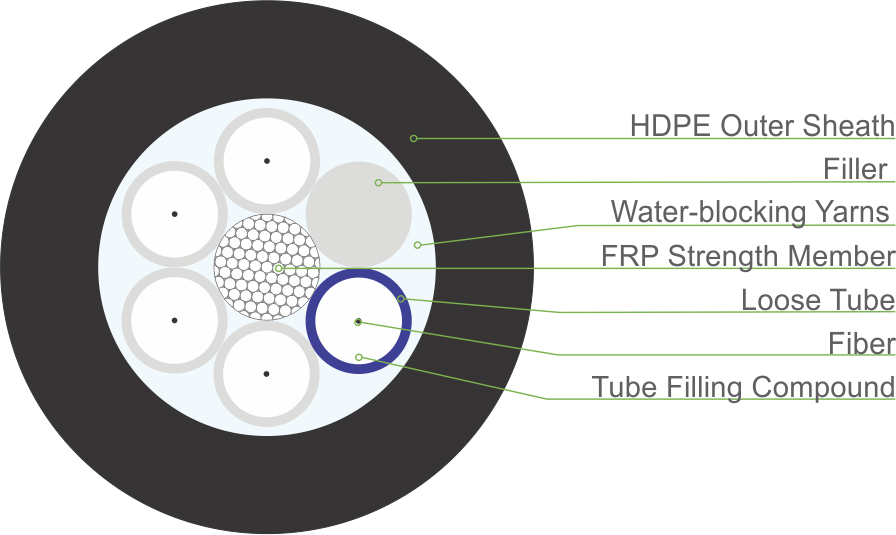

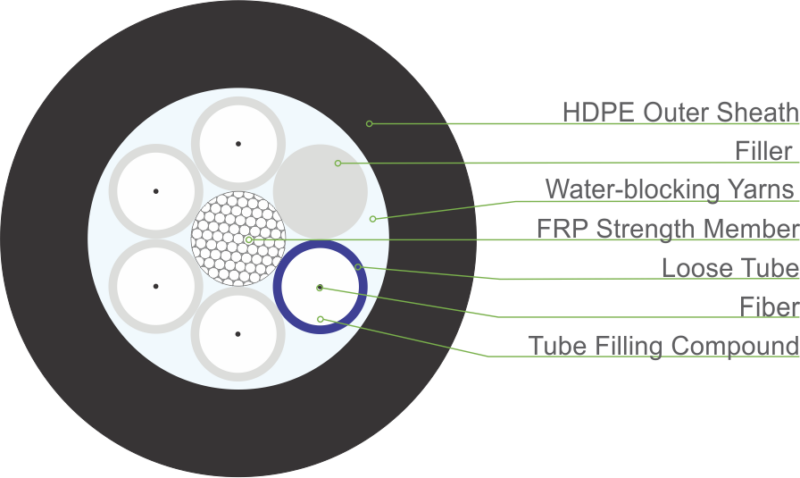

GYFY Cable, single-mode/multimode fibers are positioned in the loose tubes, which are made of high modulus plastic materials, while the loose tubes strand together around non-metallic central strength member (FRP) into a compact and circular cable core. For certain high fibre count cables, the strength member would be covered with polyethylene (PE).The water-blocking yarns are distributed into the interstices of the cable core. Then the cable is completed with a HDPE sheath.

Key Features

• Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length
• Critical protection to fibers, based on the excellent hydrolysis resistance and strength performance of tube material and special filling compound filled in the tube
• Excellent ultraviolet prevention with PE sheath
• The following measures are taken to ensure the water blocking performance of the cable:
• Single steel wire used as the central strength member
• Special water-blocking filling compound in the loose tube
• 100% cable core filling – APL moisture barrier
• Application: Duct/Aerial

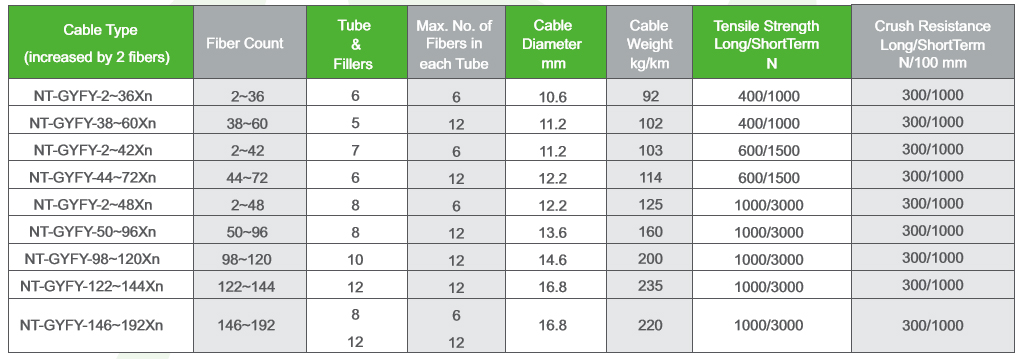

Specifications

Downloads

• Spec Sheet

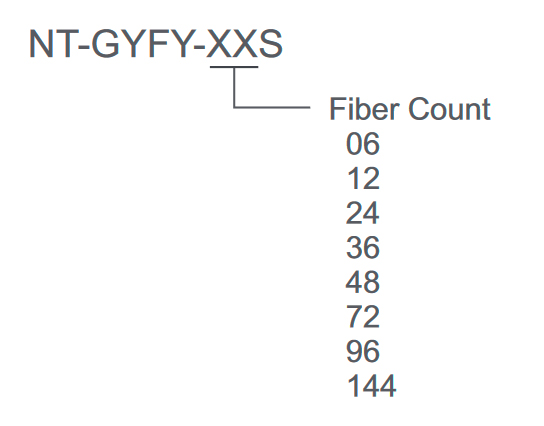

Ordering Information
