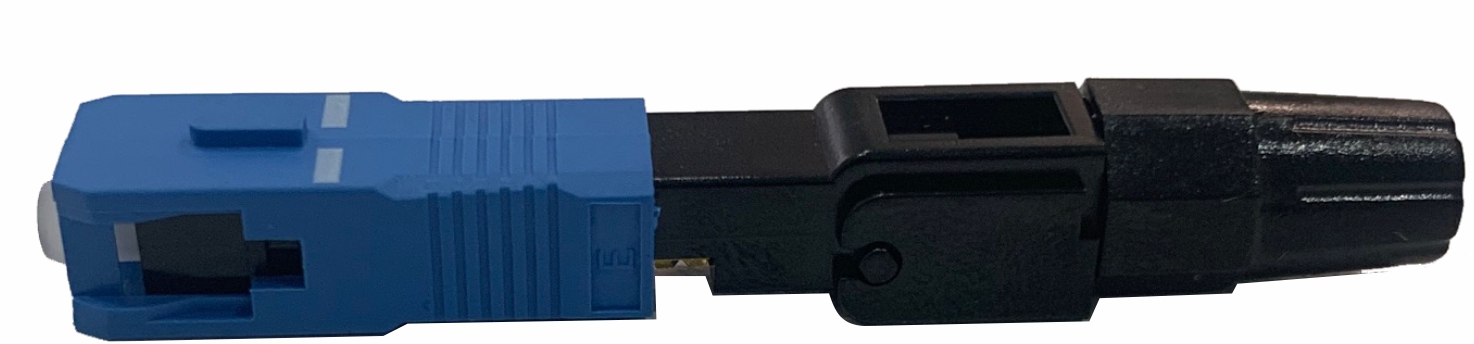

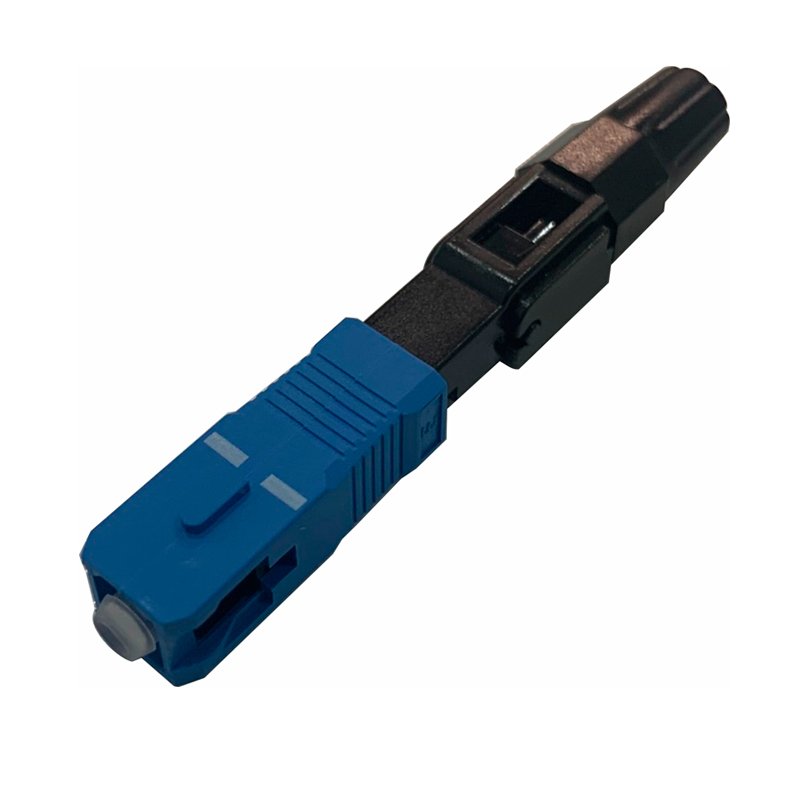

SC-Fast Connector
Overview
The connector is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factor y -mounted fiber stub and a pre- polished ceramic ferrule. This technology provides a fast, secure and reliable SC-compatible optical fiber termination for either multimode or s ingle mode cable.
Key Features
- Precision mechanical dimension
- Fast, easy to installation
- Low insertion loss
- Ultra low back reflection
- Conforms to 1 EC61754-4
- All materials conform to Ro H S
Specifications
| Item | Parameter |
| Insertion Loss | =0.5dB |
| Return Loss | MM / PC=-20dB SM / UPC=-40dB SM / APC=-50dB |
| Durability | 0.3dB Max |
| Assembly Time | Nom. <60S |
| Repeatable installation | >5Times |
| Allowable tensile strength | >30N |
| Applicable Cable | 2.0 x 3.0mm Flat Drop Cable |
| Operating Temperature | -40°C- + 85°C |
| Storage Temperature | -40°C- + 85°C |
