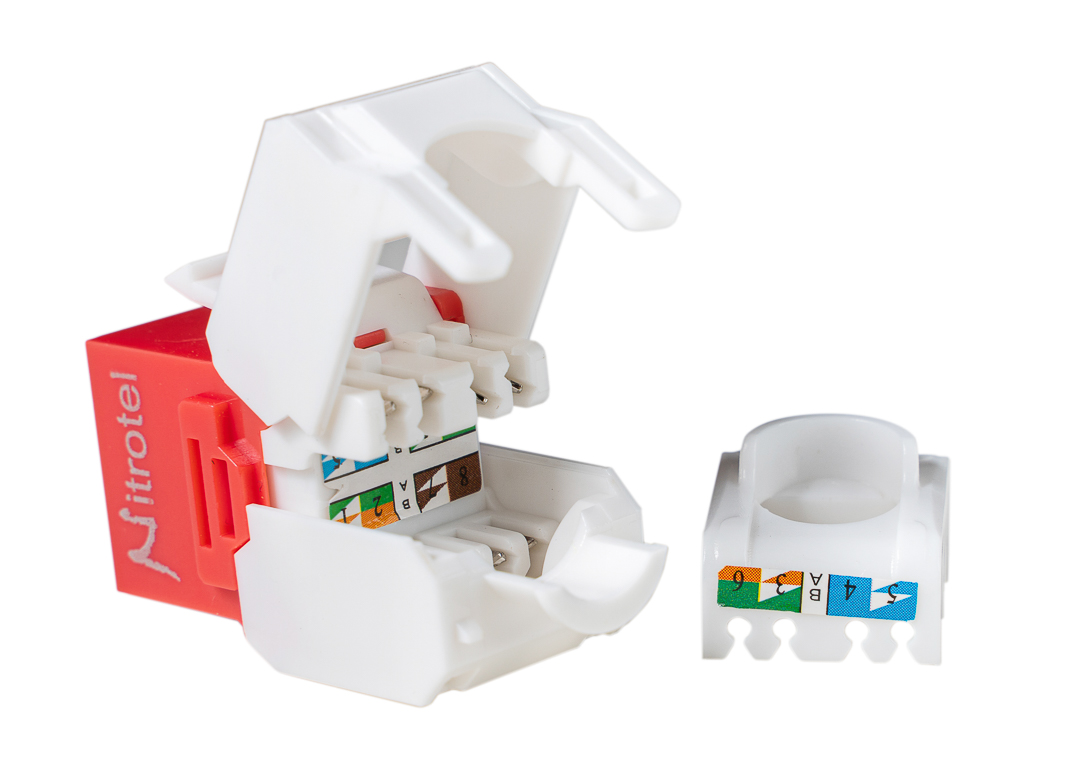

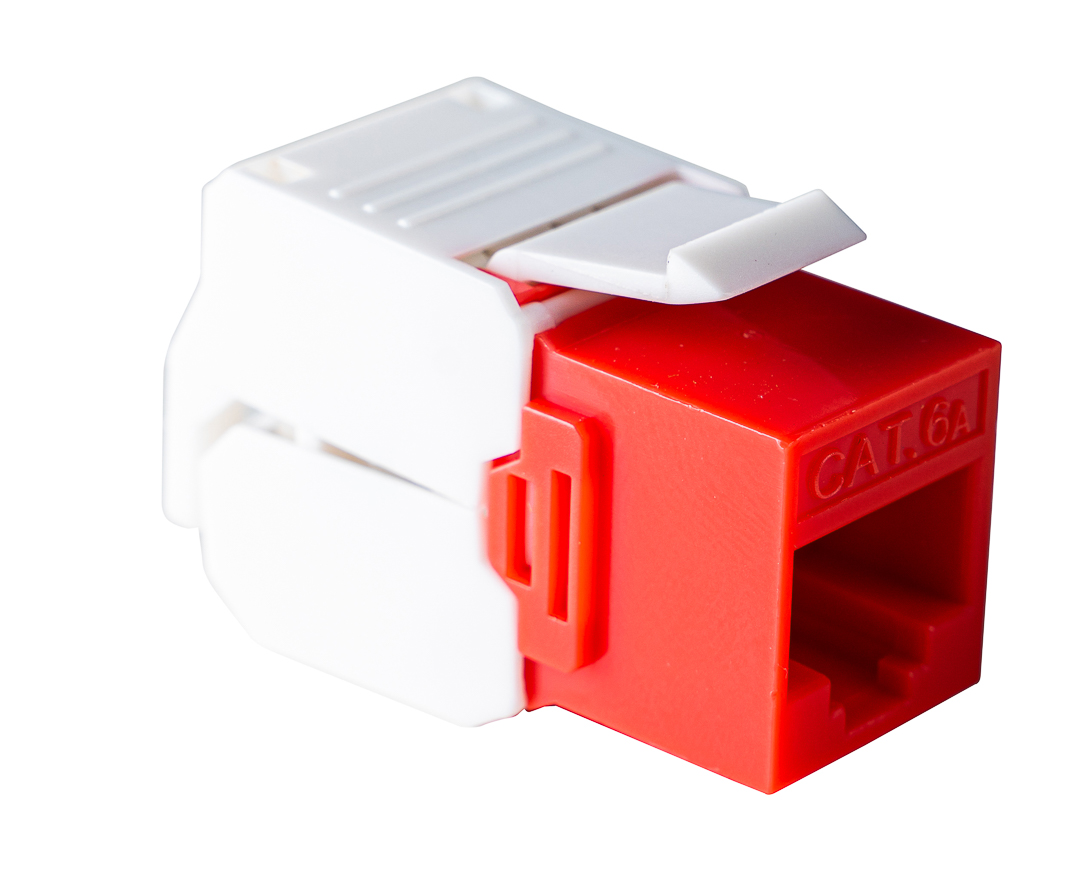

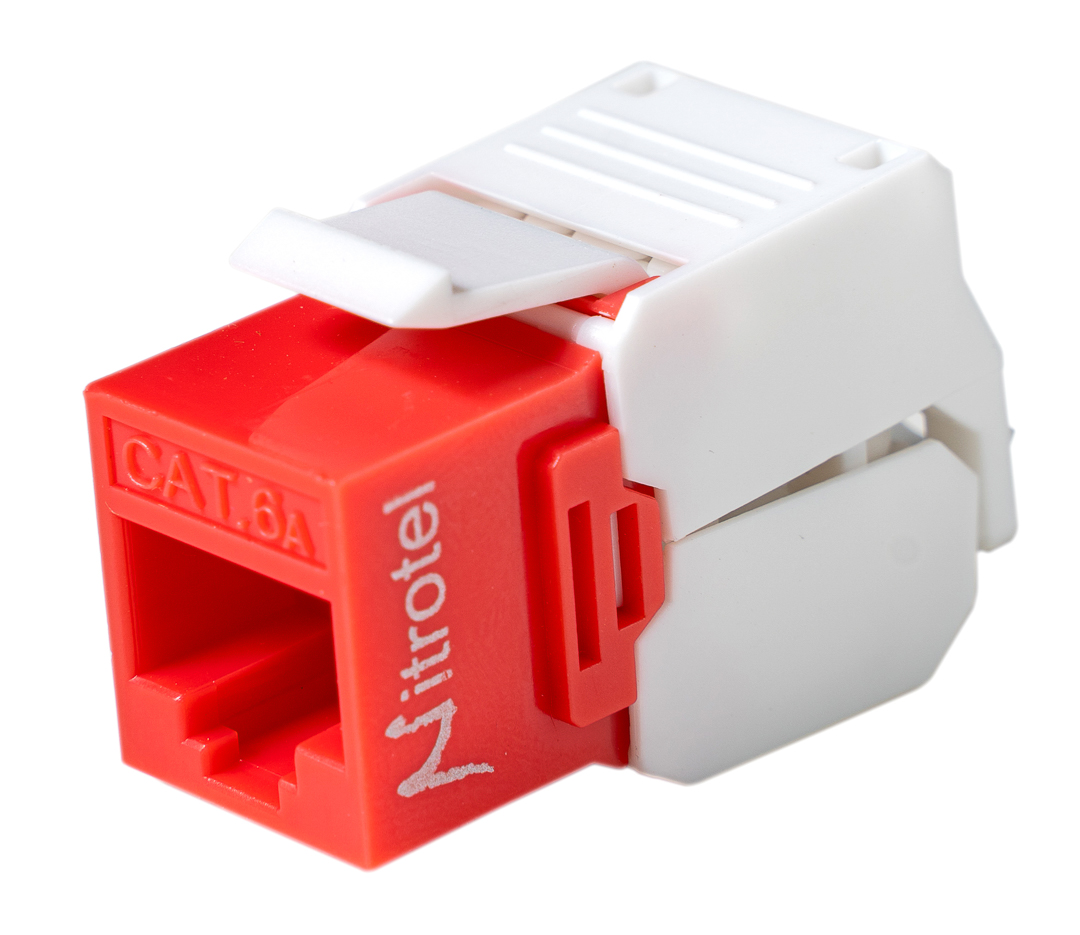

Category 6a, RJ45, Keystone Jack Module, Unshielded
Overview
Nitrotel EngineerPro Cat.6A keystone jacks lead you to the gateway that expedites 10GB over copper solution. Patented Printed Circuit Board (PCB) is designed to deliver excellent ®headroom beyond 500MHz. UL-certifified EngineerPro jacks achieve ISO/IEC approved channel requirements for Class EA and exceed EIA/TIA-568.2-D specifications. Their compact design allows them to fit into any conventional face plate, outlet box, or panel. They also features dual-color coded labeling made for both 568A & 568B wiring schemes.
Key Features
- Backward compatible.
- Compliant with EIA/TIA-568.2-D Cat6A connecting hardware specifications.
- PoE standards: IEEE 802.3af, 802.3at, 802.3bt, UPoE, and Supports Power over HDBaseT™ (PoH) up to 100 watts
- Dual-color coded labeling made for both 568A & 568B wiring schemes.
- Compact slim design fits into any conventional face plate, outlet box, or panel.
- Patented Printed Circuit Board designed to meet Cat6A performances.
- Insertion life: 750 cycles minimum.
- 50u” gold plated contacts.
Specifications
| RJ45 Jack | |
| Housing: | ABS+PC, UL 94V-0, with optional color. |
| Bracket Set: | PBT+Glass Fiber UL 94V-0. |
| RJ45 Jack Contac | |
| Material: | Phosphor Bronze with Nickel plated. |
| Finish: | 50 micro-inch Gold plated on Plug contact area. |
| IDC | |
| Hosing: | PC+Glass Fiber, UL 94V-2. |
| Terminal: | Phosphor Bronze with min. 50 micro-inch Tin plated. |
| IDC CAP | |
| IDC CAP: | ABS, UL 94V-0 |
| PCB | |
| PCB: | FR4, UL 94V-0 |
Downloads
Ordering Information
Jack Color
NTKJ6A + (Color Code) SL
| BU | RD | GY | BK |
| WH | YL | GN | PR |
