Overview

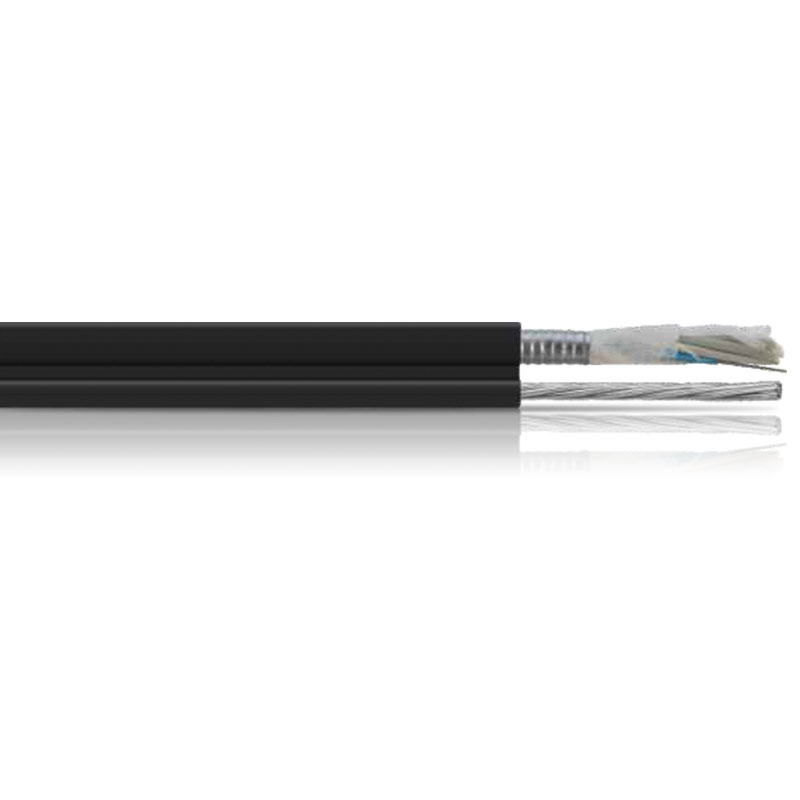

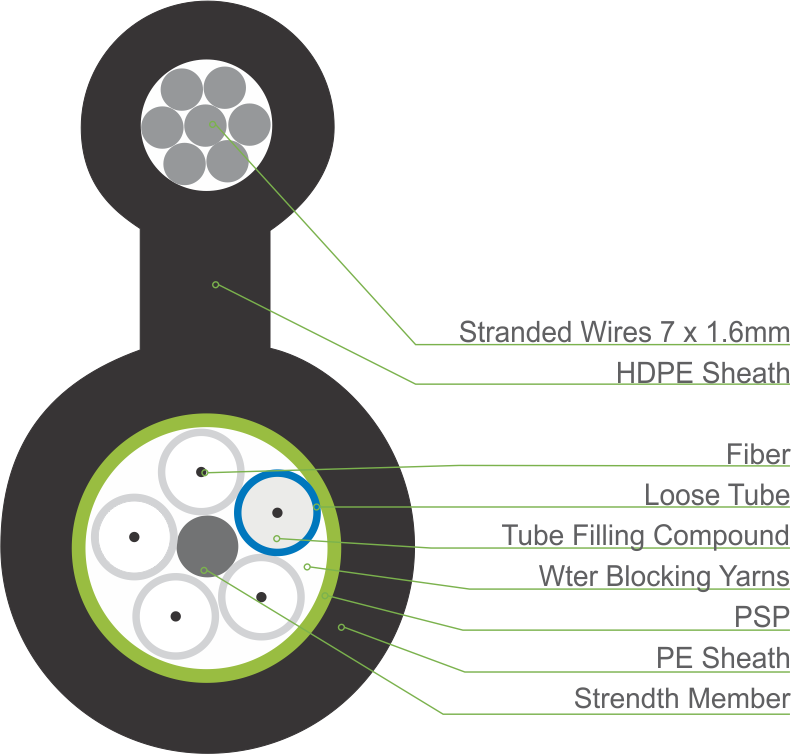

In the Nitrotel GYTF8S cable, single-mode/multimode fibers are positioned in the loose tubes, which are made of high modulus plastic, while the loose tubes strand together around metallic central strength member into a compact and circular cable core, and the water-blocking yarns are distributed into interstices of it. After a PSP is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a HDPE sheath to be a figure-8 structure. This kind of cable is specifically used for self supporting aerial installation.

Key Features

• Excellent mechanical and temperature performance
• Critical protection to fibers, based on the excellent hydrolysis resistance and strength performance of tube material and special filling compound filled in the tube
• The following measures are taken to ensure the water blocking performance of the cable:
• Single steel wire used as the central strength member
• Special water-blocking filling compound in the loose tube
• 100% cable core fillingo PSP moisture barrier
• Application: Duct/Aerial

Specifications

Downloads

• Spec Sheet

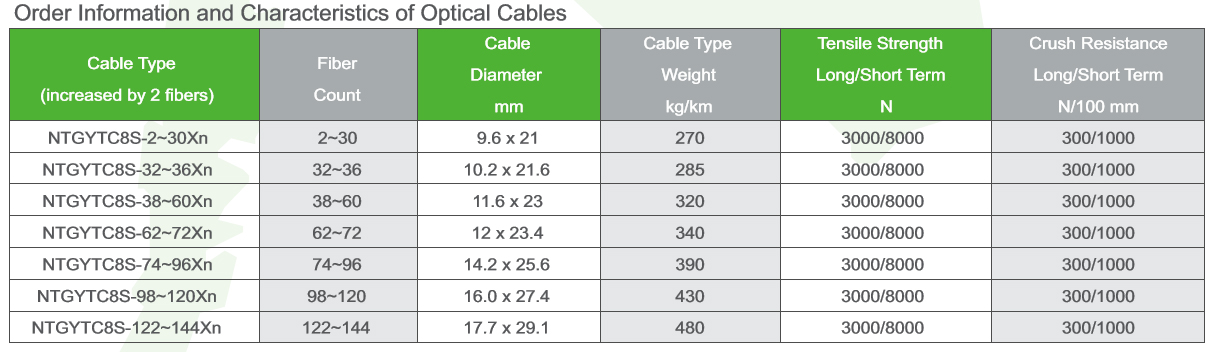

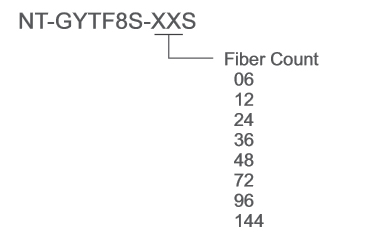

Ordering Information

NT-GYTF8S-XXS
