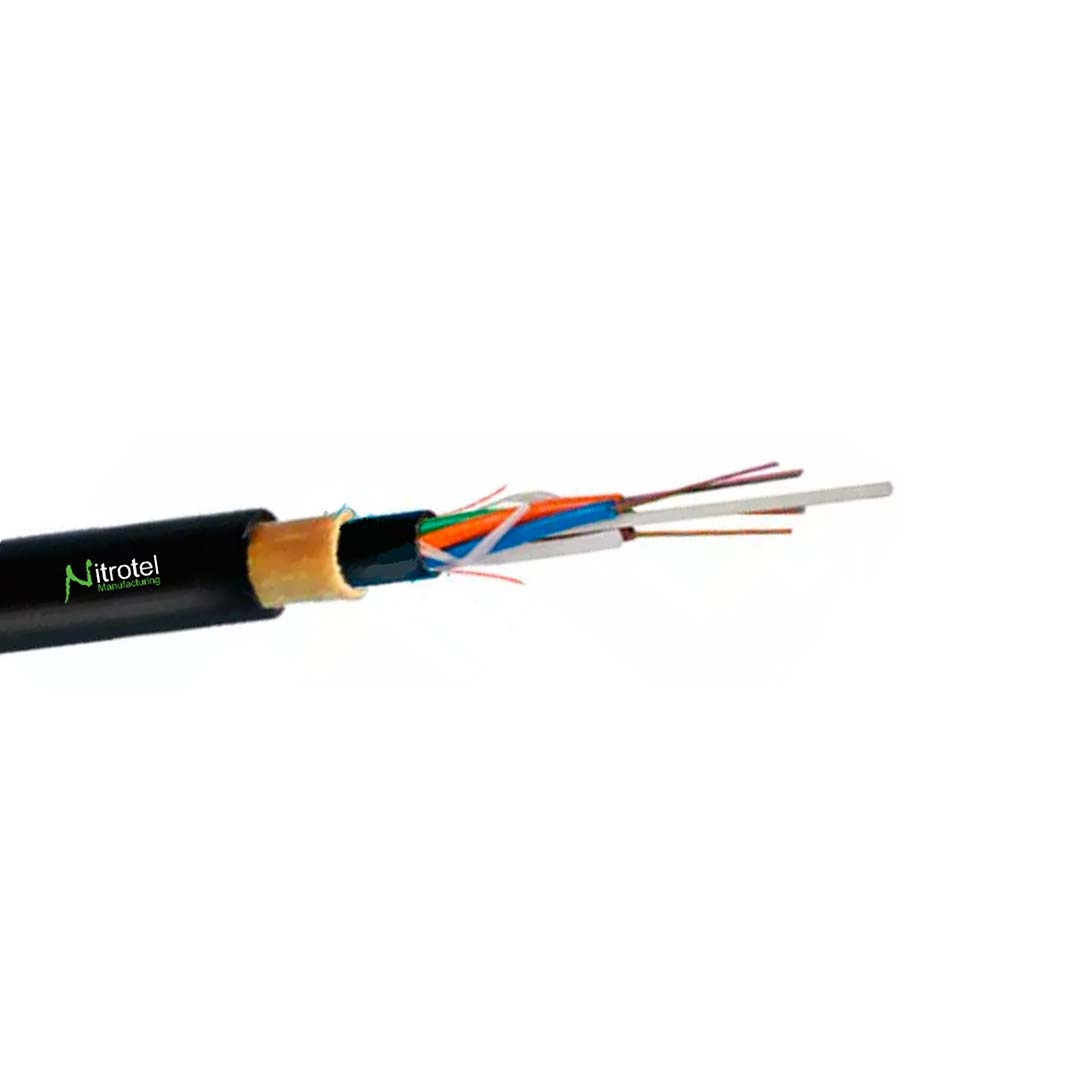

All Dielectric Self-supporting Aerial Cable (ADSS)
Overview
In the Nitrotel ADSS cable, single-mode/multimode fibers are positioned in the loose tubes, which are made of high modulus plastic materials, while the loose tubes strand together around non-metallic central strength member (FRP) into a compact and circular cable core. The loose tubes are filled with filling compound, while water-blocking materials are distributed into interstices of the cable core. Then, the cable is completed with a PE outer sheath.
Key Features
- Easy installation
- Excellent corrosion resistance
- Light weight and small diameter
- Span from 100 to 400m
- 6 to 288 fibers, SM G652D or G655, options MM
- The life expectancy is over 30 years
- The careful design of aramid yarn quantity and stranding process can satisfy the demand on various spans.
- Application: Aerial self-supporting
Specifications
Downloads

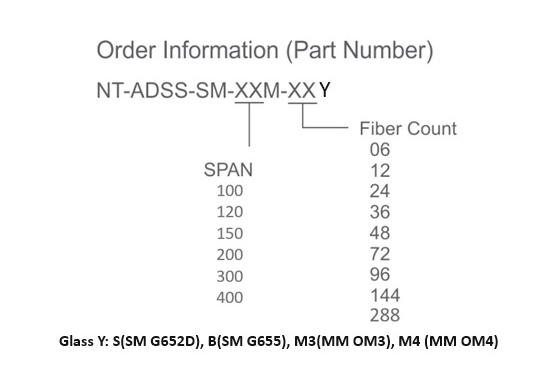

Ordering Information
